Comment créer cette figure besoin de votre aide

[Mouna]

Bonjour,
Besoin de créer cette figure est ce quelqu’un peut me décrire les différentes étapes
Je vous remercie
Please provide a detailed description of the issue. Provide as much information as possible, including screenshots and/or screen recordings. For screen recording, we recommend using Loom (loom.com), an easy-to-use screen recording tool that works on Windows, iPadOS, and macOS. Loom videos can be easily embedded on the forum simply by pasting their URL. Topics without detailed information will be automatically closed. For subscription, billing, and licensing-related issues please open a support ticket using the link below. Please contribute to the community with meaningful, high-quality posts, and always use a respectful tone.

https://support.shapr3d.com/hc/en-us/requests/new

[Xdrakosha]

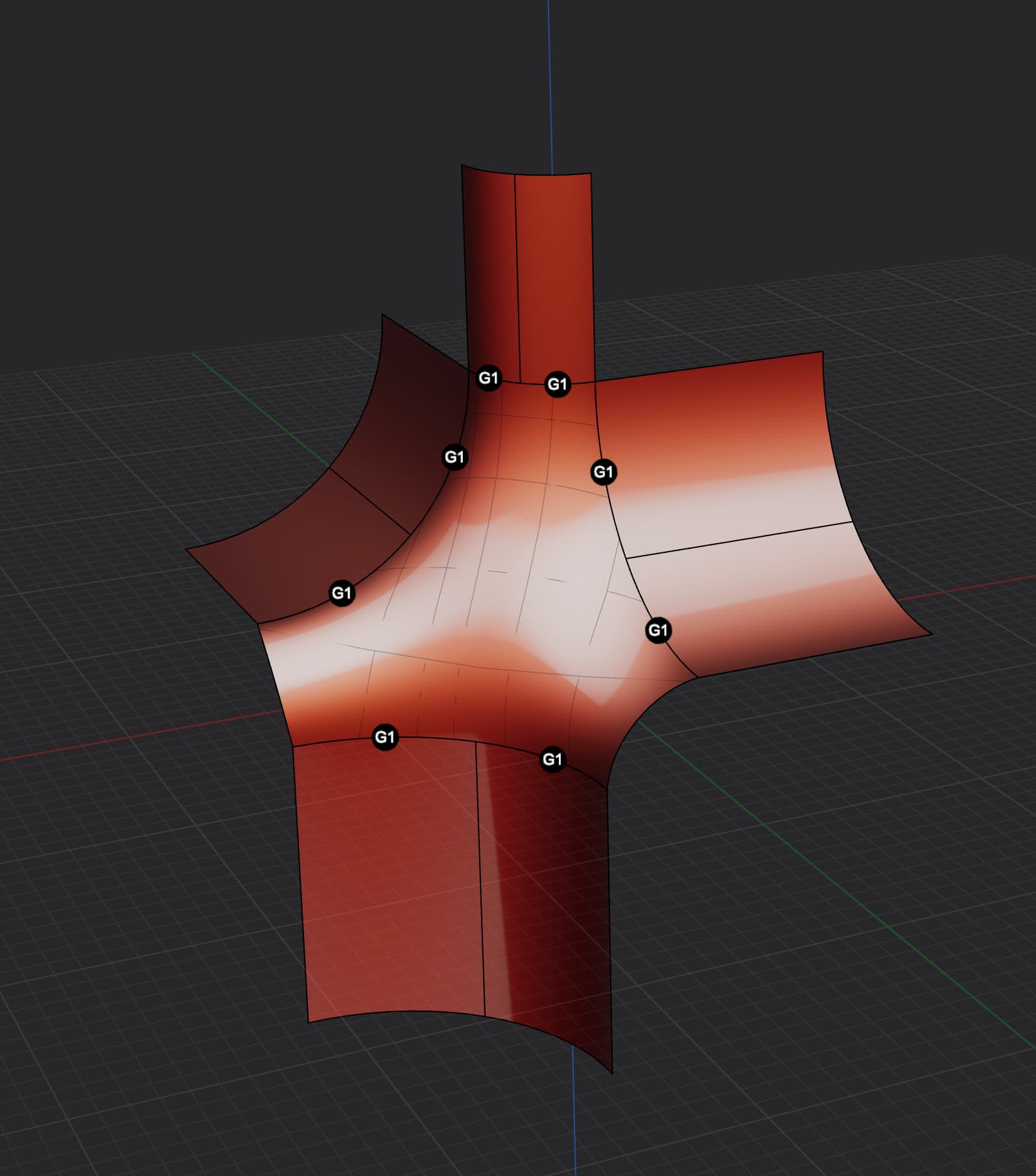

Modeling a Hollow Triple-Pipe Joint with Smooth Fillets

[Oregonerd]

Now do a Zebra stripe analysis on it.

[Xdrakosha]

@Oregonerd

analysis on it.

[SCALEMODEL]

LOL The original has some optical illusion.

[Oregonerd]

Sure it works but it is quite distorted

[SCALEMODEL]

Maybe like a ball or some iscosphere in the middle. I thought it was a square at first.

[Xdrakosha]

@Oregonerd

it works but it is quite distorted

Your variant?

[SCALEMODEL]

Tried it with NURBS, lines match up.

[Xdrakosha]

@SCALEMODEL

Tried it with NURBS

Unfortunately this is not S3D solution.

[SCALEMODEL]

Yup too bad we got no nurbs, but mostly likely the correct method used to create it the original example.

I think that was Oregons point about the Zerbra distortions.

[Oregonerd]

We are seeing the limitations of the tool?

[SCALEMODEL]

Makes nice legs for a table

[SCALEMODEL]

At least Visualization is getting better!

Modeling not so much.

But for QUICK VIZ!

[Xdrakosha]

@Oregonerd

We are seeing the limitations…

For ages already

[Andreas]
