A fantasy classic lathe

For a garage diorama I thought it would be nice to put in a lathe.

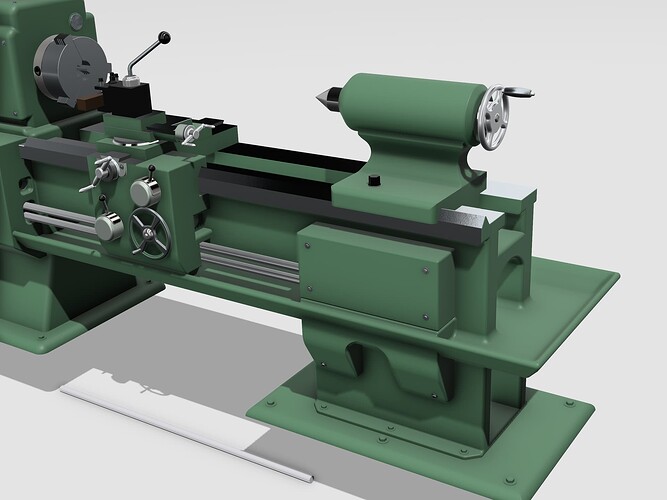

Could not find what I liked, so I designed one.
Now, a lathe comes with many accessories, and I haven’t designed them yet. I think I need to do that too, but that’s for a later time.




20 Likes

Nice work, that looks similar to my old Clausing lathe.

1 Like

That’s very good work :+1:

1 Like

Very impressive!

1 Like

Thanks all.
In the mean time I have printed the lathe. It is nearly impossible to print it as 1 part so I separated it such that printing was possible. Here are some pictures.


All together now (temporarily). It’s scale 1/18th and Iadded a qtip for reference purposes.

The cross-slide does slide on the prism bed.


Could not resist to put it in this state in the garage diorama.

14 Likes

That’s so cool.

3 Likes

That’s working out really great.

2 Likes

Love the lathe and great choice of cars.

1 Like

How the hell did you create that. It leaves me speechless
