Help needed in creating an annular joint around and object

Hello, I am trying to create an annular snap joint around the top edge of a rectangle box with radii edges.

Does anyone know how to use a sketch profile of the annular snap joint
and “revolve” it around a non cylindrical object?


1 Like

You can use the ‘sweep’ tool to sweep the profile around the perimeter.

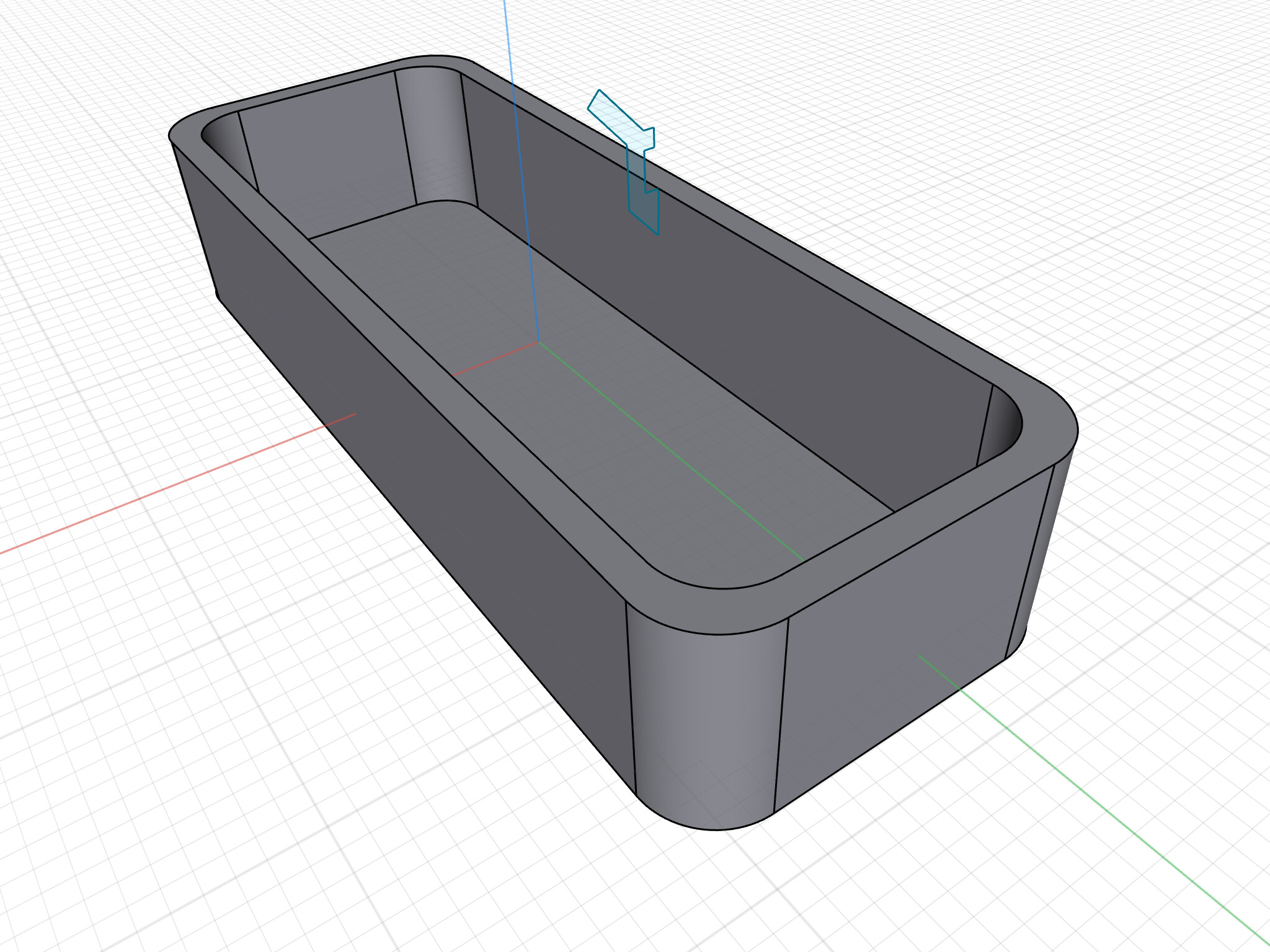

Here’s the workflow…

You’ll notice that to sweep around the corner I had to crop the corner of the profile as it extended beyond the axis of rotation.

Awesome, Thank you so much!
