Connecting 2 circles to make body

Need help? We are here.
1

It’s a simple design, but I can’t seem to get the lines to connect with the circles in order to create an extrudable body. What do I need to do next?

Thanks,
Mark

Dishwasher Clean-Dirty Slider 01.01.shapr (92.8 KB)

image925×393 42.5 KB

2

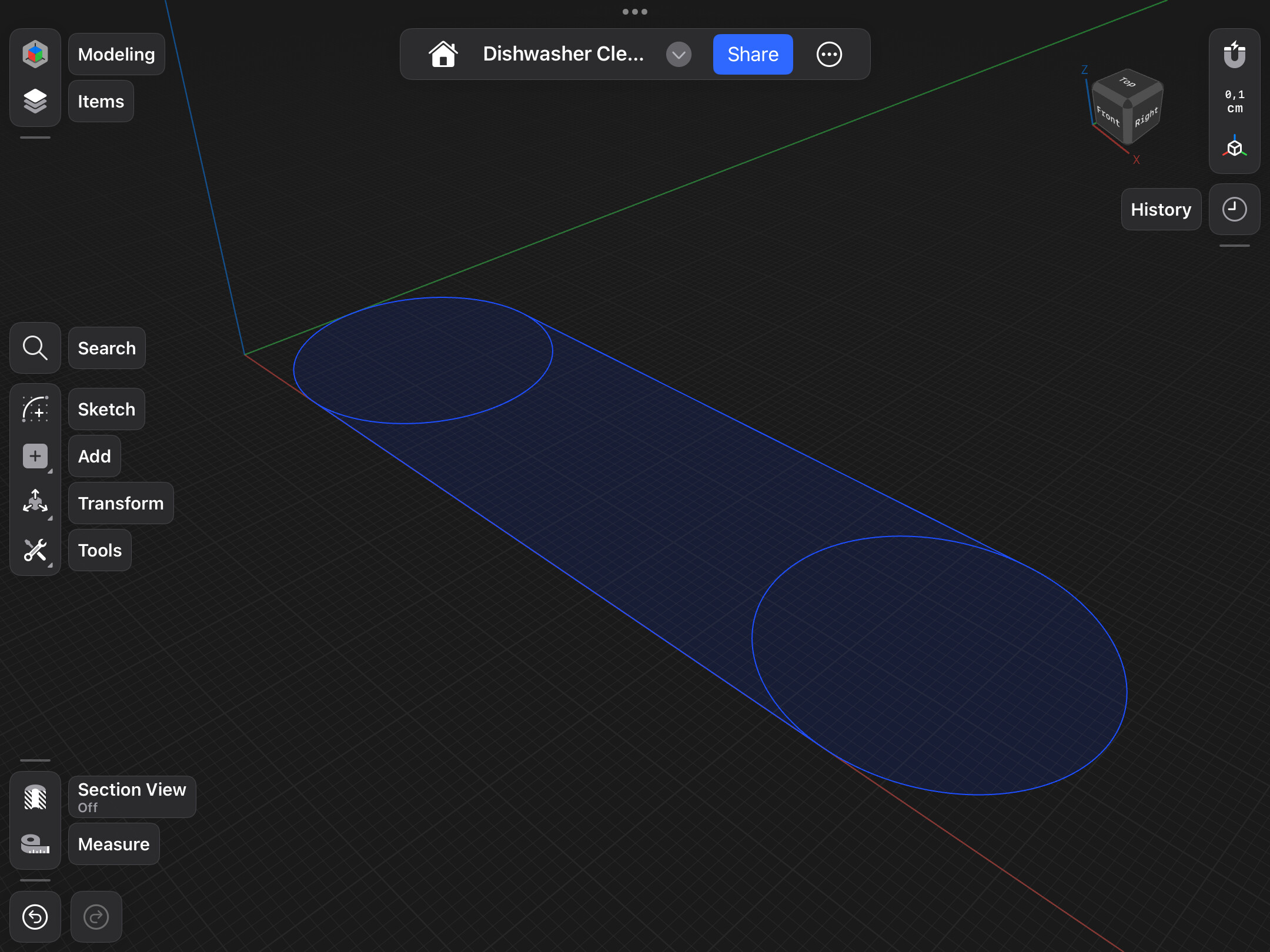

I opened the file and it looks just fine, here’s how it looks:

IMG_3079
IMG_30792160×1620 519 KB

3

Just make the lines coincidence and tangent to the circles.

Don’t do like that. This is your circle and line above it.

image869×564 4.86 KB

From the bottom of the circle line event not intersect with the circle

image1534×739 16.5 KB

4

I don’t know how you achieved this horrible result but here is how it should be done.

5

Got it! Thanks for the replies. I moved both ends of both lines until the “intersection” comment popped up and that did it.

Mark

image794×352 43.8 KB

6

Well if we had Sketch Fillet and Fillet Full Round for extruded model this wouldn’t happen. :melting_face:

Missing basic features.

7

This will happen anyway.

If a person doesn’t pay attention to things like constraints, fillets won’t help at all.

Even if in this particular case it would solve the issue, a similar problem will immediately appear elsewhere.

P.S. I’m not against the fillet function in sketches at all — quite the opposite, I actually support it.

8

Well you will never know, those 2 basic tools is missing (REALLY BASIC, why missing I have no idea), could have been utilized first given option to be used.

Draw 2 circles, box, and constraint. (Had a giggle in shapr the need to do this :person_facepalming: I don’t even do this in Freecad. )

or

Just rectangle, sketch fillet 4 corners.

Or better yet rectangle 2 sides full round fillet.

9

I know that very good. I came from Fusion360 and still use it from time to time, so I know how many basic things are missing in Shapr3D.
