3D from 2D JPEG / PDF

[Nespresso]

Hi there,

I am designing / printing spare parts for my table saw where specific parts are not available anymore.

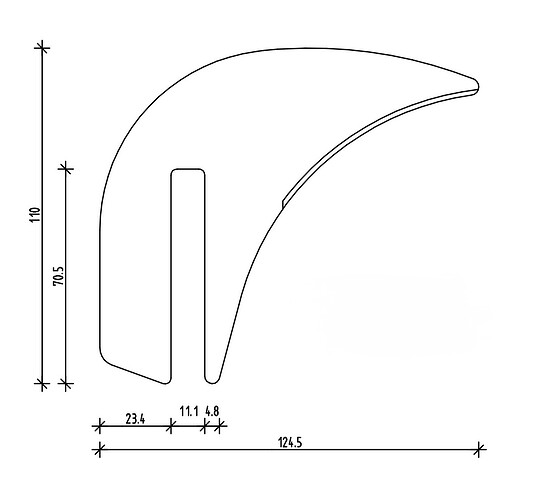

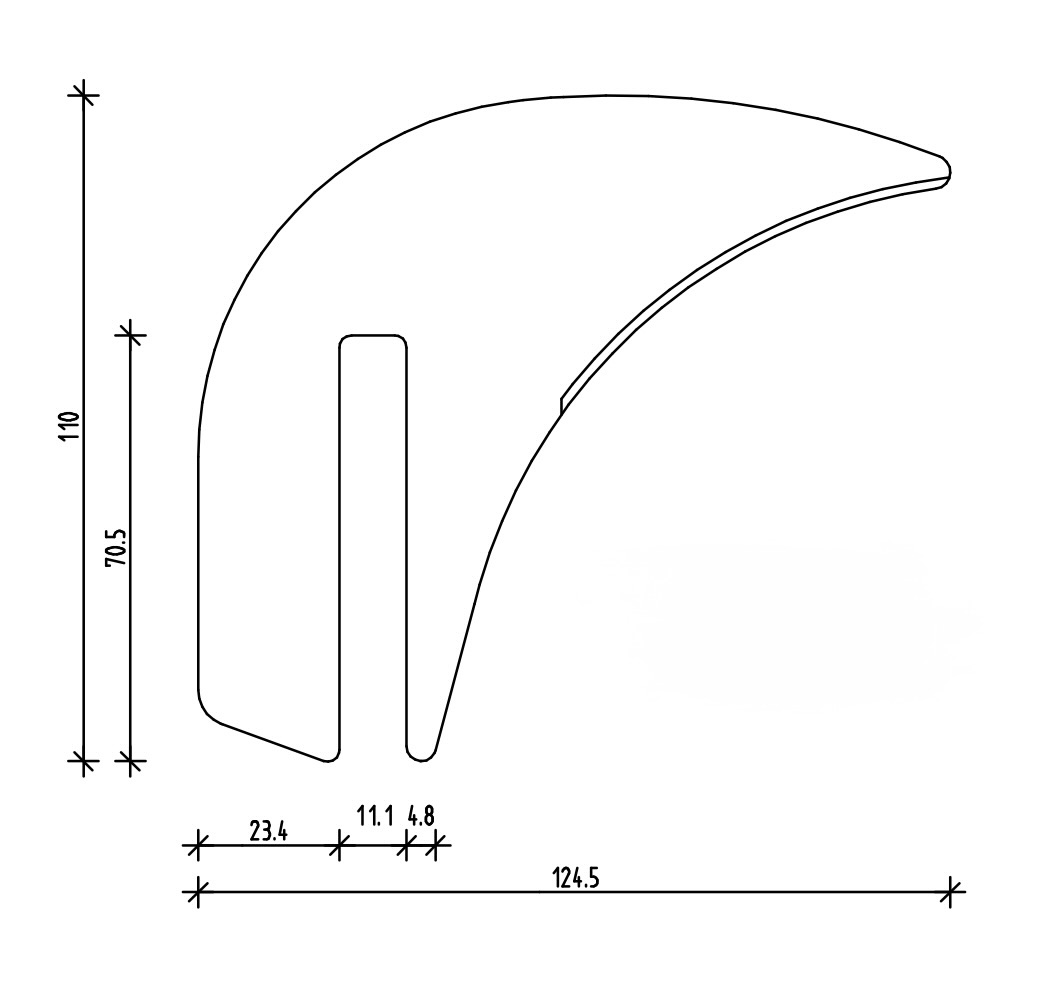

In this case, I would like to generate a 3D for either milling or printing a master.

I only have the 2D sketch in JPEG. Is there any chance to do it in a quick fix. Sure, this example is quite easy to do by myself, but I have some others where It would be more difficult.

Thanks, Frank

[Xdrakosha]

@Nespresso

I have some others where It would be more difficult.

Are you looking for someone who will do that for you?

[Nespresso]

No. I want to do this myself, just want to understand how to do (in this simple geometry), and if Shapr3D has a simple solution.

[Xdrakosha]

@Nespresso

just want to understand how to do

Make a sketch, constraint every part, set sizes from the photo.

@Nespresso

and if Shapr3D has a simple solution

The “solution” is the same as in any other CAD
