Unable to close sketch

Need help? We are here.
1

I have created a sketch with two fit type splines, sort of offset from each other with a line to close up the gap between them.

When i leave the sketch mode and try to select the enclosed area the inner spline does not work as a separator which means that the area selected is not the area confined between the splines but much large on the inner side.

I do not know how to enclose a model or screen dump to show you. Please inform me of how to do

2

Hi Ubbe,
you can drag or paste images or upload files using this button:

image1093×147 6.11 KB

Cheers Matt

1 Like
3

Here I enclose screendumps and model

Model for export.shapr (1.2 MB)

Marked area not defined by inner spline
Marked area not defined by inner spline1920×1440 98.9 KB

Exited from sketch
Exited from sketch2048×1536 155 KB

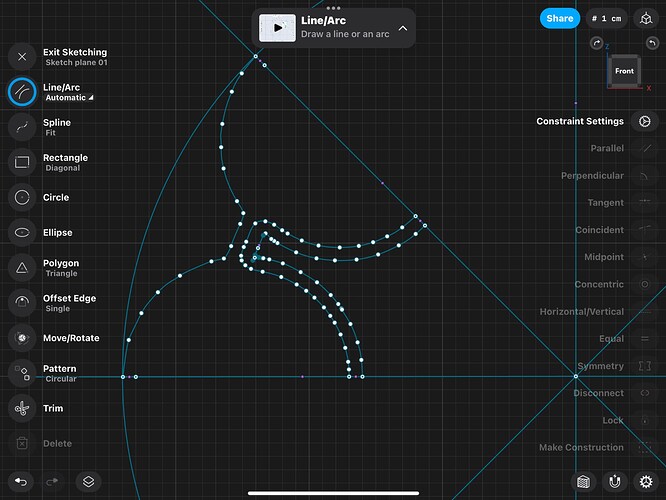

Basic sketch with splines
Basic sketch with splines1920×1440 163 KB

1 Like
4

Hey Ubbe,
can you specify your issue a little more?
I can extrude each and every closed loop in your sketch:

image893×824 167 KB

image737×576 87.4 KB

Cheers Matt

1 Like
5

Hi Matt,

Thanks for your rapid help.

I really feel stupid because Now it works for me too, and I have no idea what I did wrong. Before, every time I tried to mark the small enclosed area I got the inner segment highlighted too.
I guess one day I will understand.
For now I just have to be happy that it works.
