How do you create the appearance of a seam around a curved shape

Need help? We are here.
1

Hello. I have an organic shape (visualize a deformed apple). I want to make it appear there is a horizontal seam that goes around the whole shape so it looks like you could take it apart. How would one go about this? Is there an easy way to put an 1/8” groove or something around a curved shape so its. Consistent depth all the way around? Thanks!

2

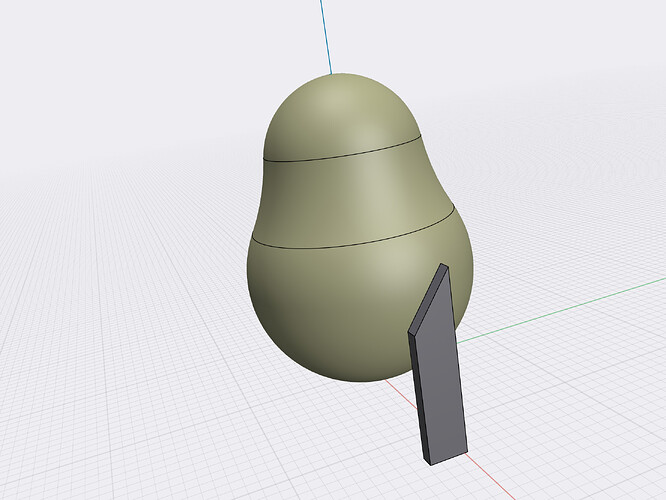

A simple (relatively) would be to duplicate the “apple” and scale it down a bit inside the apple. Hide it temporarily. Cut the original apple with a rectangle extruded through it. Then un-hide the smaller apple inside the big apple and then add them together

shape1
shape11798×1525 182 KB

SHape2
SHape21060×891 80.3 KB

shape-3
shape-31066×806 66 KB

2 Likes
3

Perfect! Thanks for the idea.

1 Like
4

IMG_1533
IMG_15332224×1668 472 KB

IMG_1534
IMG_15342224×1668 453 KB

IMG_1535
IMG_15352224×1668 412 KB

IMG_1536
IMG_15362224×1668 426 KB

IMG_1538
IMG_15382224×1668 117 KB

Extrude a rectangle with the top surface aligned with intended cut. Use split body tool with face at top of extrusion. Isolate one half and bevel edge. Repeat with other half and combine. Delete extrusion.
