Modeling a low poly fish

Need help? We are here.
1

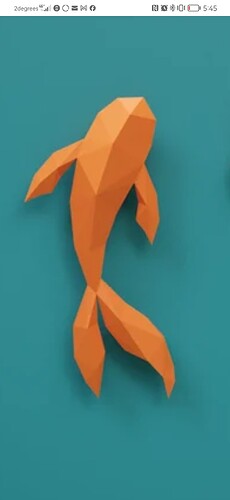

I’m trying to model this low poly fish. I can sketch the outline but the spine is say 15mm high. I can create a 3d sketch. I tried extruding and chanffering but that doesn’t work. It’s effectively lots of triangles where they go from 0mm on the outside upto 15mm in the centre of the fish. Any suggestions? Thanks

Screenshot_20250820_174510_com.android.chrome
Screenshot_20250820_174510_com.android.chrome1080×2340 89.8 KB

Please provide a detailed description of the issue. Provide as much information as possible, including screenshots and/or screen recordings. For screen recording, we recommend using Loom (loom.com), an easy-to-use screen recording tool that works on Windows, iPadOS, and macOS. Loom videos can be easily embedded on the forum simply by pasting their URL. Topics without detailed information will be automatically closed. For subscription, billing, and licensing-related issues please open a support ticket using the link below. Please contribute to the community with meaningful, high-quality posts, and always use a respectful tone.

https://support.shapr3d.com/hc/en-us/requests/new

2

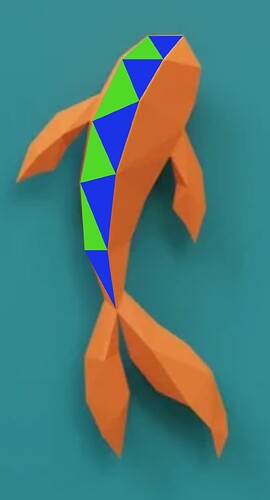

Instead of chamfer or extrude, I think this can be done exclusively by LOFT.

Just create the blue pyramid, ignore the green ones because blue ones can be used to loft the green ones.

image1120×2070 48.7 KB

Fins are little tricky, take a look at here, this method can be used to create the fins:

1 Like
