Spring design

Hello everyone,

Could someone please help out with a specific requirement regarding a spring design?

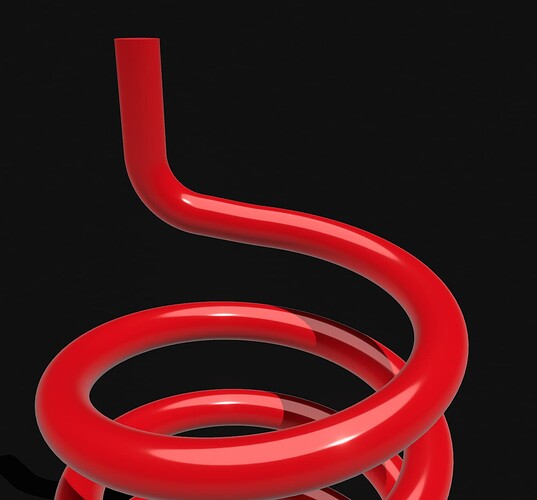

I do create a simple spring by using the rotation tool but then want to finish one end on a straight rope. Trying to do so I‘m struggling to create a smooth natural transition. Instead, there’s a edging design that shouldn’t be there. Any idea how to solve this?

Please see pictures attached.

Many thanks,

Jan



Loft with G1/2 continuity?

3 Likes

Thank you for you reply!

No, that‘s not it because i want the straight part going on the axial direction.

Hi
Or use Sweep to continue the spring..

Hi, Jean-Philippe,

I used the sweeping tool to create the ending part but that causes the edging look.

Are you sure?

2 Likes

Cn be adjusted even more…

1 Like

Here method using 3 part sweep.

If you use a polygon with four or more sides and use the face to draw your curve it will smoothly connect when you project the curve to your cylinder.

1 Like

Thank you very much! :blush: Did you assemble a spring (rotation tool) with an angeled second part using the sweep tool?

By the way (@all): Is it possible to 3D draw lines to use them for sweeping? If so one just could draw a spring with a straight ending and then sweep the whole way…

1 Like

Ah that’s one nice way too. Much appreciated, too!

1 Like

No. As I said from the beginning loft is good for that.

Yes. Why not.

That would be much harder then using revolve

I doubt it can be better

2 Likes

Dear both,

thanks again for your input. That’s exactly what I want as result. :+1:

Unfortunately it seems that I’m a much less experienced user than you are. I tried to follow each way explained but couldn’t reach your results.

Would you mind to explain a bit more the essential steps? I much appreciate it :slight_smile:

Have a nice day

Jan

1 Like

Nothing really hard to reproduce. All you need is to find right parameters :slight_smile:

Hi,
Congratulations on your proposals guys! I like this kind of thread.
Personally I will do it “the old-fashioned way”.
First, create the spring and the rounded angle with tangency constraints so as not to break. All on a single curve. (no bodies, no Revolve)
Second, use this very fluid curve to make a Sweep.
It’s my two cents… But indeed there are several ways to do it.

Theoretically…For the spring body, sweeping on the spiral edge created by a revolve command is the best solution, because the position of the cross section causes the problem, the revolve use vertical cros-section, for the sweep I used “on curve at point”. After that, several steps can follow.


1 Like

Show us :slight_smile:

So this can go in any direction

Irregular part can be drawn on the cylinder.



1 Like

Can you share this project? Would be interesting to look closer :slight_smile:

spring.shapr.zip (19.6 MB)

1 Like
